3D4M Ultra Performance

PPSU Filament.

A sulfone polymer that passes more than 1,000 steam sterilisation cycles and resists a broad range of acids and bases. It takes more impact than PEI and keeps working continuously at up to 180 °C. read further

  • High thermal properties
  • Over 1,000 steam sterilisation cycles
  • High chemical resistance

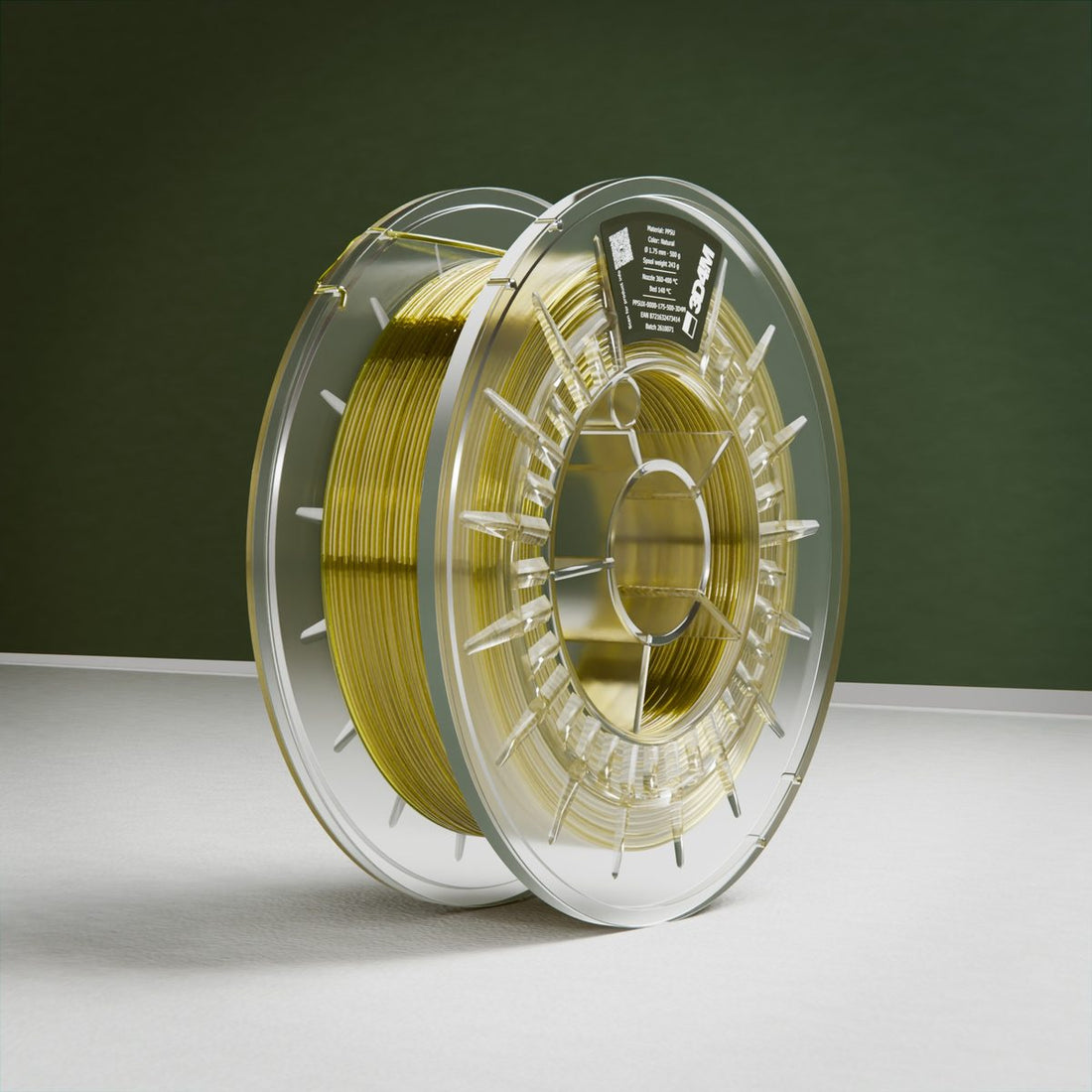

PPSU Filament, Natural, 500 g, 1.75 mm
Configure
Color
Diameter
Weight
€199.00
€398.00/kg · excl. VAT
Ships worldwide Typically ships within 3 working days Visa, Mastercard, iDEAL, PayPal, Klarna
Talk to us first

For custom specs, technical validation, or bulk pricing. Speak with an engineer before you order.

or
Order direct

Freshly produced on demand and typically shipped within 3 working days.
About this material

PPSU: the one that survives the autoclave, over and over.

PPSU, polyphenylsulfone, is an unfilled amorphous high-performance thermoplastic. Where most engineering polymers are chosen for heat or stiffness, this one is chosen for what it survives.

Its hydrolysis resistance is the standout property: measured in steam autoclaving cycles it outlasts other amorphous thermoplastics by a wide margin, passing more than 1,000 cycles without cracking, crazing or rupture. It also resists common acids and bases across a broad temperature range, and it operates continuously at up to 180 °C. Against PEI it trades some heat capability for better impact resistance and better chemical resistance. It is also inherently flame retardant, thermally stable and resistant to thermal ageing and environmental stress cracking, with good dimensional stability and good electrical properties.

It is aimed at aerospace, aircraft, automotive, dental and medical work, surgical instruments included, which is a fair summary of where repeated sterilisation or chemical exposure meets a part that has to keep working. The filament meets ISO 10993 for medical applications, the European regulations EC No. 1935/2004, EC No. 2023/2006 and EC No. 10/2011 on food contact, and the FDA rules for food contact. The colorants we use meet those European regulations too. Besides steam, it can be sterilised with gamma radiation, e-beam and ethylene oxide, it resists detergents, and it is radiotranslucent. Its raw material is RoHS compliant. Do not use it for implantable medical devices: the maker of the raw material reserves that use for a separate family of biomaterials.

It never touches water during production and goes straight into vacuum packaging, so it arrives dry. Layers bond well, and that is where the finished part gets its impact resistance and durability.

Physical properties
PropertyConditionValueTest method
Density 1.29 g/cm3 ASTM D792
Melt mass-Flow Rate (MFR) 365 ºC/5.0 kg 17 g/10 min ASTM D1238
Molding Shrinkage-Flow 3.18 mm 0.70 % ASTM D955
Water Absorption 24 h 0.37 % ASTM D570
Water Absorption Equilibrium 1.1 % ASTM D570
Mechanical properties
PropertyConditionValueTest method
Tensile modulus 3.18 mm 2340 MPa ASTM D638
Tensile Strength Yield, 3.18 mm 69.6 MPa ASTM D638
Tensile Elongation Yield, 3.18 mm 7.2% ASTM D638
Tensile Elongation Break, 3.18 mm 60 to 120% ASTM D638
Flexural Modulus 3.18 mm 2410 MPa ASTM D790
Flexural Strength 5.0 % Strain, 3.18 mm 91.0 MPa ASTM D790
Notched Izod Impact 3.18 mm 690 J/m ASTM D256
Tensile Impact Strength 3.18 mm 399 kJ/m2 ASTM D1822
Thermal properties
PropertyConditionValueTest method
Heat Deflection Temperature 1.8 MPa, Unannealed, 3.18 mm 207 ºC ASTM D648
Glass Transition Temperature 220 ºC ASTM E1356
CLTE Flow, 3.18 mm 5.6E-5 cm/cm/ºC ASTM D696
Electrical properties
PropertyConditionValueTest method
Volume Resistivity 9.0E+15 ohms•cm ASTM D257
Dielectric Strength 0.0254 mm > 200 kV/mm ASTM D149
Dielectric Strength 3.18 mm 15 kV/mm ASTM D149
Dielectric Constant 3.18 mm, 60 Hz 3.44 ASTM D150
Flammability properties
PropertyConditionValueTest method
Flame Rating 0.76 mm V-0 UL 94
Other properties
PropertyConditionValueTest method
Refractive index 1.672 ASTM D542
Steam Sterilization -w/ Morpholine 132 °C, 30 min per cycle, 0.19 MPa steam, 7.0 MPa flexural stress, morpholine 50 ppm; passed without cracking, crazing or rupture > 1000 Cycles
Printer settings & data sheets

A high-temperature printer, and a slow hand.

PPSU needs a genuinely high-temperature machine: a nozzle between 360 and 400 °C and a bed at 140 °C or above. Print slowly, 15 to 30 mm/s, and use Magigoo HT on glass or a PEI sheet. Keep the printer out of draughts.

Dry it first.

Pre-dry the filament at 120 °C for two to four hours. The material picks up moisture from the air, and on a polymer printed this hot that shows up immediately in the part. Reseal the spool between jobs.

Loading documents…
Recommended print settings
ParameterValue
Nozzle temperature360 to 400 °C
Heated bed temperature140 °C and above
Print speed15 to 30 mm/s
Drying recommendations120 °C, 2 to 4 hours
AdhesionMagigoo HT on glass or a PEI sheet
Empty spool weight
Filament weightSpoolEmpty weight
200 to 750 g RS 200 GH2L PC 243 g
Measurements & tolerance

Precision-engineered consistency.

Consistent prints start with a uniform filament shape. We continuously monitor diameter and roundness during production. When filament varies in size or loses its round profile, material flow becomes erratic. This causes under-extrusion and weak layer bonds.

Our manufacturing process keeps the cross-section stable across the full spool. Your printer receives a steady volume of material without pressure drops in the nozzle. You get predictable extrusion on every job, so with PPSU you can focus on your design, not your material.

1.75 mm filament
±0.05mm
Diameter tolerance, edge to edge across the spool.
2.85 mm filament
±0.10mm
Diameter tolerance, edge to edge across the spool.
Both diameters
≥99%
Cross-section roundness across the spool.
The production process

Sealed at the source. Never touched by water.*

Unlike manufacturers who cool filament in a water bath, our filament never touches water during production. Moisture inside the material creates bubbles and weakens layer bonding during printing. Water-free production keeps extrusion consistent and bubble-free.

Sealed and ready to print.
We produce on demand. Every spool is vacuum-sealed immediately after extrusion, so it reaches you dry. This process keeps every spool of PPSU ready to print out of the box.

* At times of high demand, and for some variants, production may run on a conventional water-cooled line. Contact us before ordering if you require material produced with our water-free process.

Vacuum-sealed filament spool, straight off the extrusion line

Vacuum-sealed on the production line, before it ever leaves the machine.

Traceability & quality assurance

Precision you can track. From pellet to part.

We produce every spool on demand in our own facility. This gives us direct oversight that mass-produced stock lacks. Your spool comes from a fresh, identifiable batch rather than long-term warehouse inventory. We document the production trail for every run.

Documented, not just shipped.
We keep the production logs for every batch we make. On request, we link a Certificate of Analysis and Technical Data Sheet to your specific batch. You get clear data for your spool of PPSU.

About 3D4M

Dutch engineering for parts that define the future.

At 3D4M, we develop and manufacture high-performance thermoplastic filaments for demanding applications across aerospace, defence, semiconductor, automotive, medical research, and industrial manufacturing. We work with engineers, researchers, and manufacturers who need materials that go beyond standard specifications.

Our engineering starts with the machines themselves. We design and build our own extrusion lines around our patented extrusion process, combining material expertise with technology developed in-house. For moisture-sensitive polymers, our air-cooling technology offers a water-free cooling option, allowing us to tailor the production process to the material.

Our production facility is built on a single, uncompromising principle: control. From our extrusion technology to precise diameter monitoring and vacuum-sealed packaging, we control every stage to deliver consistent filament with batch traceability.

Trusted by global leaders
Supporting over 100 universities alongside global industry leaders, we have become a trusted partner to advanced research labs and manufacturers worldwide. We bring together material expertise and Dutch engineering to help turn ambitious ideas into reliable, high-performance parts.

3D4M headquarters in Haarlem, the Netherlands

3D4M headquarters, Haarlem, the Netherlands.

Trusted by
Talk to an engineer

Validating this material for your application?

The leap to a high-performance polymer can be complex. Speak directly with one of our material engineers about your printer setup, target specifications, and material performance. We are here to help you de-risk your validation phase.

Ready to order

Specify your specs. We'll start your batch.

Experience the benefits of freshly extruded, water-free filament. Select your required diameter and spool weight in the order panel to initiate our on-demand production process. We ship worldwide, vacuum-sealed and ready.

Place your order
